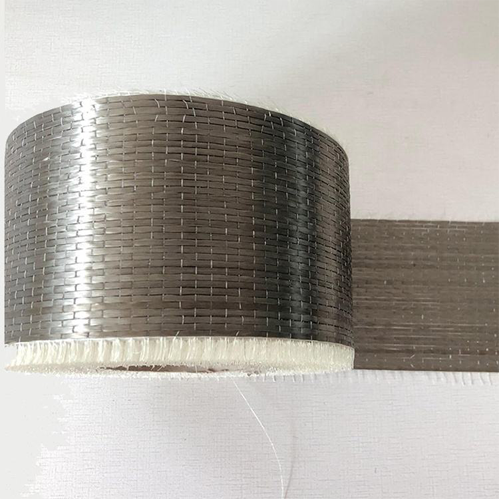

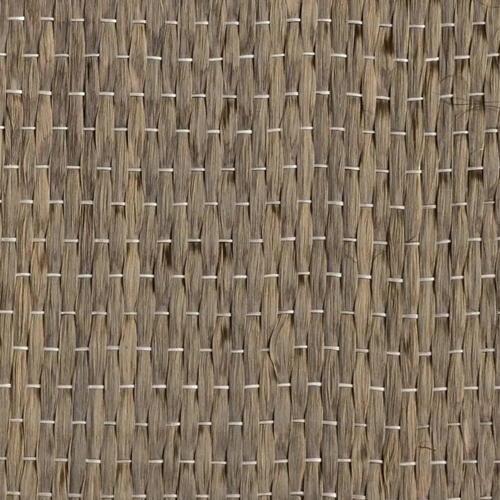

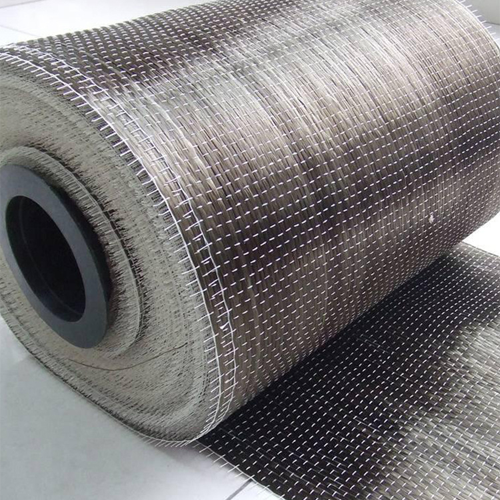

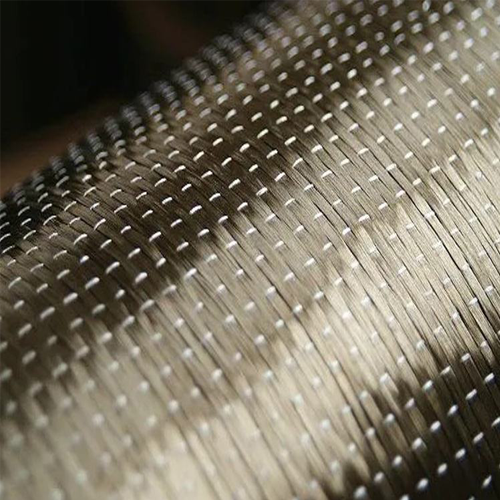

Unidirectional Basalt Fiber Fabric

Unidirectional Basalt Fiber Fabric

Basalt fiber unidirectional cloth: basalt fiber textile cloth is a textile cloth processed by basalt fiber spinning (generally the diameter of single wire is less than 9 microns), which can be customized according to the requirements of users. It is suitable for fiber cloth in low and high temperature environment of - 260 ~ 650 ℃. Basalt fiber cloth not only has excellent low and high temperature resistance, but also has the advantages of low capacity, low thermal conductivity, thermal shock resistance, chemical corrosion resistance, high tensile strength and elastic modulus, electrical insulation, wear resistance and so on. Basalt fiber cloth, after surface coating, can also improve its air tightness, water resistance, temperature resistance, chemical resistance, radiation resistance and other properties.

Product Details

Basalt fiber unidirectional cloth: basalt fiber textile cloth is a textile cloth processed by basalt fiber spinning (generally the diameter of single wire is less than 9 microns), which can be customized according to the requirements of users. It is suitable for fiber cloth in low and high temperature environment of - 260 ~ 650 ℃. Basalt fiber cloth not only has excellent low and high temperature resistance, but also has the advantages of low capacity, low thermal conductivity, thermal shock resistance, chemical corrosion resistance, high tensile strength and elastic modulus, electrical insulation, wear resistance and so on. Basalt fiber cloth, after surface coating, can also improve its air tightness, water resistance, temperature resistance, chemical resistance, radiation resistance and other properties.



Product application: copper clad laminate base cloth, needle punched felt base cloth, base cloth of fireproof cloth, base cloth of radiation protection materials, base cloth for construction engineering repair and reinforcement, especially suitable for tarpaulin of military equipment and facilities with strong anti-virus, anti radiation, fire prevention, chemical corrosion and shielding.





Tensile Intensity

Tensile Modulus

Elongation

Thickness

Width


Weight (GSM)

Weave

Mpa

Gpa

%

mm

mm


280

Unidirection

≥2100

≥85

≤ 3.2

0.1

100-1000


300

Unidirection

≥2100

≥85

≤ 3.2

0.108

100-1000


350

Unidirection

≥2100

≥85

≤ 3.2

0.125

100-1000
