Unidirectional Carbon Fiber Fabric

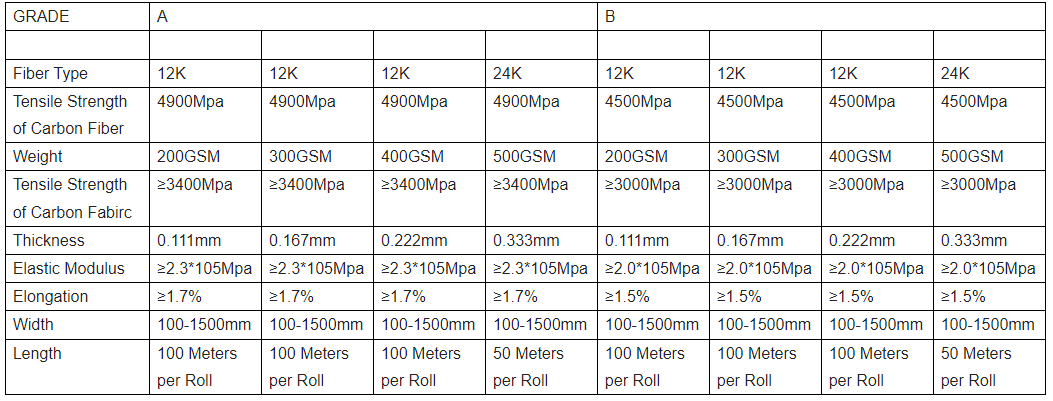

* Other specification fabrics not included above are upon requested

Introduction

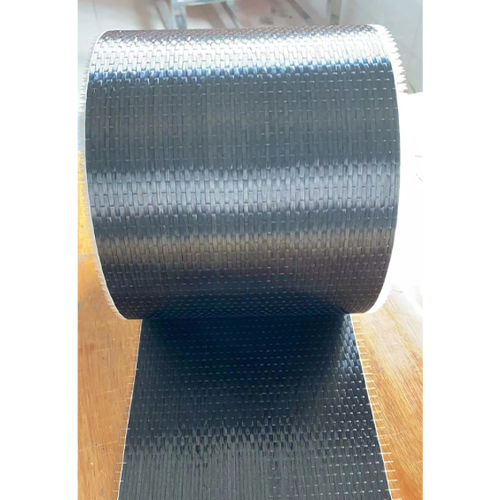

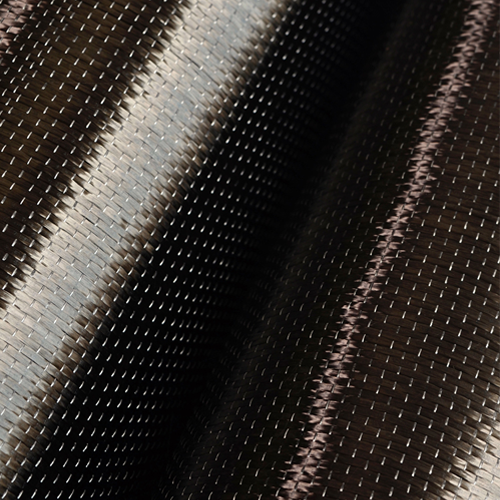

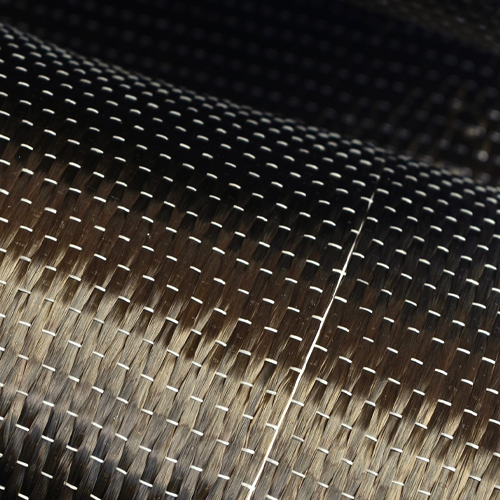

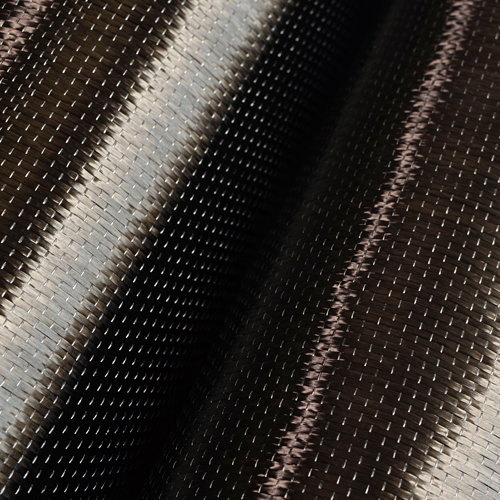

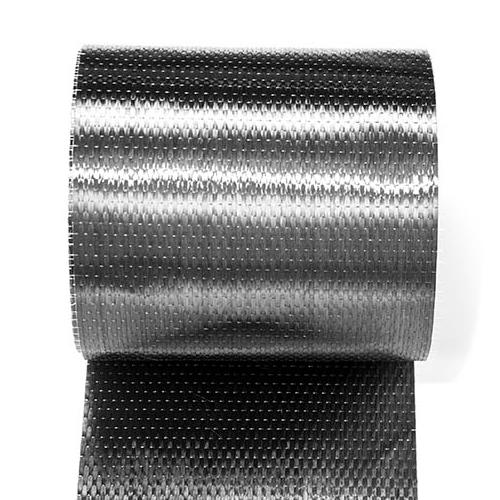

UD Carbon Fiber Cloth is made of carbon fiber by woven unidirectional weaving style. The carbon fibers we use contain high strength-to-weight and stiffness-to-weight ratios, carbon fabrics are thermally and electrically conductive and exhibit excellent fatigue resistance. When properly engineered, carbon fabric composites can achieve the strength and stiffness of metals at significant weight savings. Carbon fabrics are compatible with various resin systems including epoxy, polyester and vinyl ester resins.

Application

1, the use of the building load increase.
2, the project uses functional changes

3, material aging

4, the concrete strength is lower than the design value

5, structural cracks processing

6,harsh environment service component repair and protection.

Property

1. Light weight, easy to construct, and little increasing the weight on constructed based materials.

2. Soft, free to cut, is suitable for a variety of shapes structures, and have close adhesion with reinforced concrete surface.

3. The thickness is small, so it is easy to overlap.

4. High tensile strength, high flexibility, and have the same effect as to use steel plate reinforcement.

5. Anti-acid and alkali, corrosion resistance, and can be used in any harsh environment.

6.The supporting epoxy resin impregnated adhesive (recommended our company matching epoxy adhesive)have good permeability, the construction is simple and time required is short.

7. Non-toxic, non-irritating odor, living still in construction.

8. Carbon fiber sheet has high tensile strength, which is equivalent 10 - 15 times to ordinary steel.

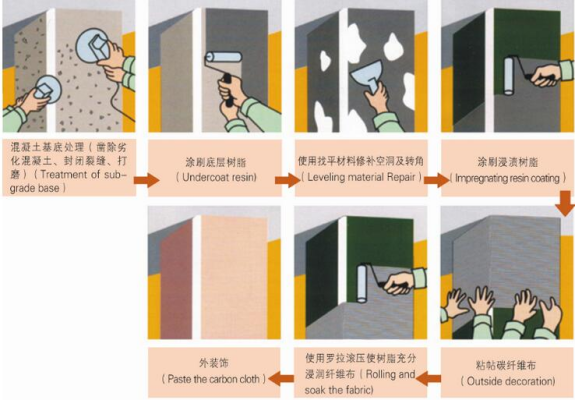

Construction Steps
