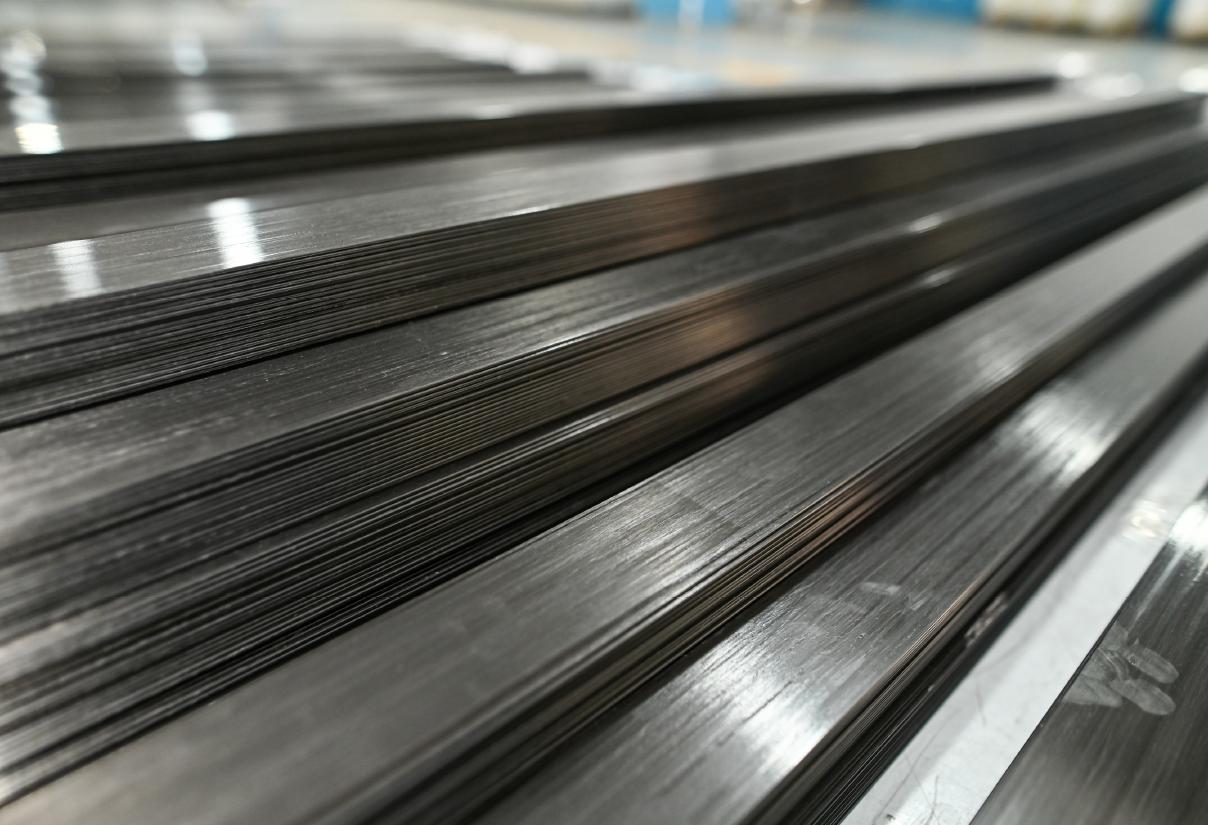

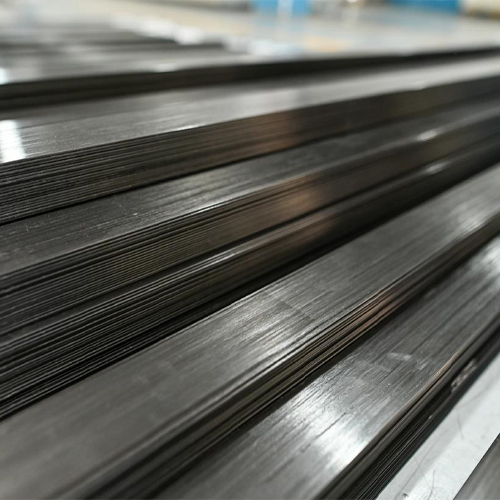

Carbon Fiber Plate

    Zhengdan Carbon fiber pultruded plate, item code ZDCP1.2, ZDCP1.4 , ZDCP2.0 and ZDCP3.0, is mainly used in construction reinforcement.

We choose the good quality carbon filament, which steadily ensures the plate with high tensile strength and modulus all the time. The tensile strength can reach 2400MPa, tensile modulus can reach 160GPa.

    Now "wrap system" is very popular all over the world, because its obvious strengthening to the structure and easy operation, less time and cost on construction.

Carbon fiber plate can be used to strengthen the bridge, repair the crack on the concrete.

Besides, our plate has its own advantage compared to other manufacturer's, that its surface is without release agent, which can result in much better bonding with the concrete.

Application

The remedy repair and strengthening of the plate and beam of concrete structures

The strengthening of the openings around the wall and plate

The strengthening of beams of wooden buildings, etc

The remedy repair and strengthening of tunnel and cable lines

The strengthening of bridge plate, bridge pier and girder

Package

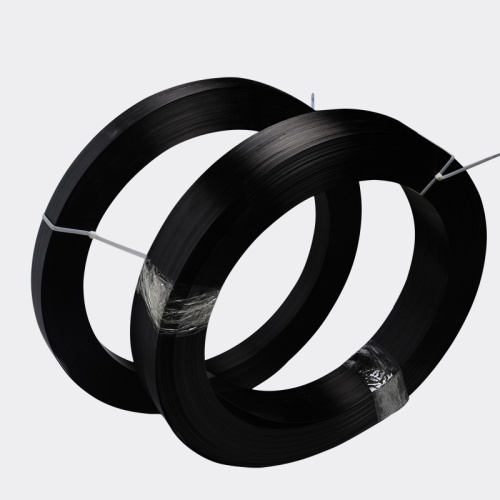

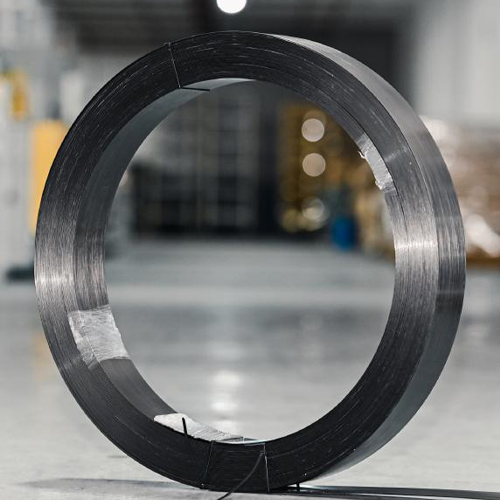

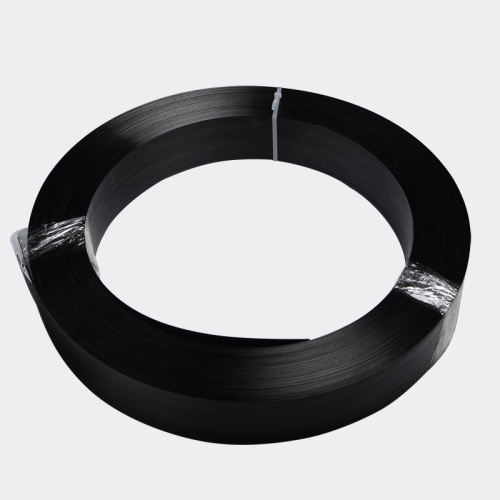

The length of  carbon fiber plate is 100m, the width is divided into 50mm, 100mm; the thickness is divided into 1.2mm, 1.4mm, 2.0mm, 3.0mm. Roll into a ring and use a belt to bind. Other specifications can be customized.
