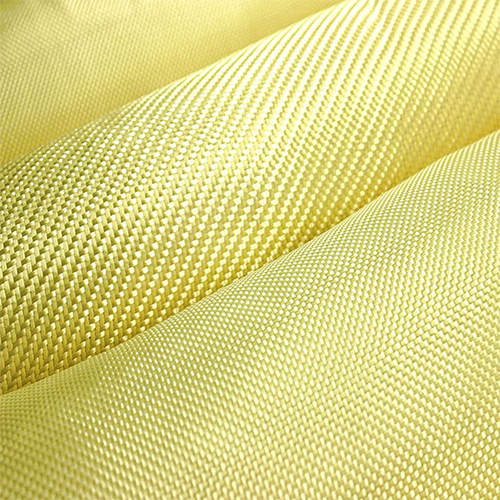

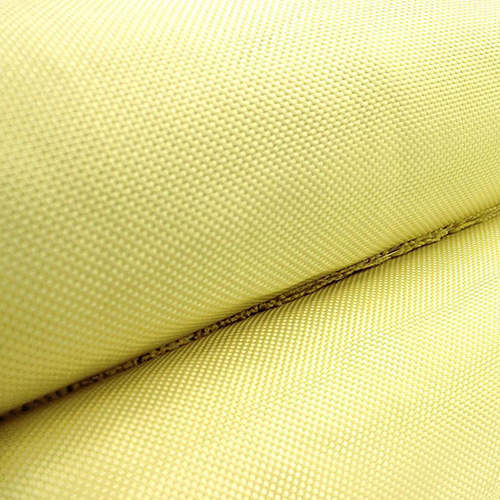

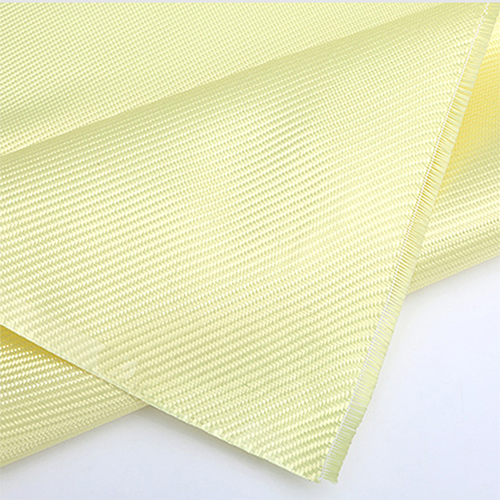

Aramid Fabric

Aramid fiber was the first organic fiber used as reinforcement in advanced composites with high enough tensile modulus and strength. They have much better mechanical properties than steel andglass fibers on an equal weight basis. Aramid fibers are inherently heat- and flame-resistant, which maintain these properties at high temperatures.

Product Details

Style	Weave	Fiber Count (10mm)		Weight (g/m2)	Thickness (mm)	Width (mm)
400D Kevlar	Plain/Twill	12	12	80	0.11	100-1500
500D Kevlar	Plain/Twill	13	13	120	0.15	100-1500
600D Kevlar	Plain/Twill	9	9	100	0.2	100-1500
800D Kevlar	Plain/Twill	11	9.5	160	0.3	100-1500
1000D Kevlar	Plain/Twill	7	7	155	0.24	100-1500
1000D Kevlar	Plain/Twill	8	8	180	0.25	100-1500
1000D Kevlar	Plain/Twill	9	9	200	0.26	100-1500
1000D Kevlar	Plain/Twill	10	10	220	0.28	100-1500
1500D Kevlar	Plain/Twill	5	5	170	0.22	100-1500
1500D Kevlar	Plain/Twill	5.5	5.5	185	0.24	100-1500
1500D Kevlar	Plain/Twill	6	6	205	0.26	100-1500
1500D Kevlar	Plain/Twill	6.5	6.5	220	0.28	100-1500
1500D Kevlar	Plain/Twill	7	7	240	0.3	100-1500
3000D Kevlar	Plain/Twill	6.7	6.7	440	0.42	100-1500

Properties
1.Good resistance to abrasion
2.Good resistance to organic solvents
3.Nonconductive
4.No melting point, degradation starts from 500°C
5.Low flammability
6.Good fabric integrity at elevated temperatures
7.Sensitive to acids and salts
8. Sensitive to ultravioletradiation
Applications
1.Reinforcement Materials
---Repairing and reinforcing buildings and bridges ---Optical cable reinforcement
2.Protection Equipments Material
---Bulletproof apparels and helmets ---High-temperature resistence gloves and apparels
3.Composite Material
---Secondary Structure of big airplanes ---Airplane cockpits and engine cowlings ---Yachts and vessels ---Automobile outer shells ---Fan blades ---Circuit boards
4.Friction sealing
---Brake facings and clutch disks ---Gearbox friction plates ---Gaskets ---Packings
5.Sports instruments and others
---Golf shafts ---Tennis rackets/lines ---Skidding instruments ---Racing vests ---Fishing poles
